Pipe Jacking Machine

Short Description:

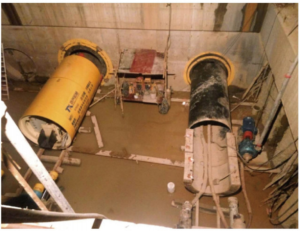

Pipe jacking machines use shield technology to excavate soil or rock with a rotating cutter head, removing the excavated material via a mud conveying system while hydraulic jacks push precast pipes into the tunnel and grout stabilizes the walls. These machines are applied in diverse municipal and civil projects, including building underground water supply/drainage systems, installing gas pipelines, optical cables, and constructing subway tunnels, minimizing surface disruption. Regarding types, the slurry balance machine suits various soil and high - groundwater conditions; the Earth Pressure Balance Machine is for soft to medium - hard soils; and the rock machine, equipped with powerful tools, is for rock formations and even mixed soil - rock conditions. They are key to modern underground construction.

Civil Engineering Projects, Grouting Technology, Hydraulic Jacking System, pipe jacking machine, Slurry Balance Pipe Jacking Machine, Slurry Balance System, Subway Tunnel Construction, TUNNEL BORING MACHINE, Underground Pipeline Installation

Product Description:

HRC Series

APPLICABLEDIAMETER:500-4000MM

APPLICABLEGEOLOGY:ROCK

* Suitable for the sand layer. gravel layer pebble layer. boulders layer. rock layer, etc.
* Adopted outer ringgeartransmission mechanism, large transmission torque force;
* Access to the chamber directly during the construction process to do maintenance and repair work;
* Broken by hob once, sheared by the twisted leg again;
* Long distance jacking;
* Data collected and controlled by the computer.

RPB Series

* Designed for tunneling cross street, highway and downtown area, used for construction of subway station, gas and electrical power pipeline etc.
* Full section cutting.
* Keeping earth pressure balance, low construction disturbance to surround soil.
* High space utilization rate, fewer construction area.
* No disturbance to the transportation and architecture on the ground.
* No noise and environment pollution during the construction.

SRC Series

APPLICABLEDIAMETER:800-4000MM
APPLICABLE GEOLOGY:PEBBLW,GRAVEL,SOFT ROCK

* Independent cutter head center scour system
* Reliable displacement space shear crushing structure
* Reasonable cutter design makes the pebble particle size effectively controlled
* Stable and safe power system provides enough power for crush pebbles

SPB Series

APPLICABLE DIAMETER:500-4000MM
APPLICABLEGEOLOGY:SILT,SAND,CLAY

* Applicable to all kinds of normal soil, such as silt, sand, especially for strata with high ground water level and large soil variation range.
* The construction excavation surface instable, low disturbance to the soil around the pipe jacking, low subsidence of the ground.
* The slurry transfer system has strong continuity and the jacking construction speed is fast.
* Remote operation controlled on the ground, full automatic response within the machine head, more safe, standardized and convenient.
* The spindle seal is reliable and has a long service life.

EPB Series

* Applicable to different kinds of normal soil with low ground water level.
* Adopting low speed and high torque transmission mode with greater excavation force, and the overload coeficient can reach more than 3.
* Independent and perfect water injection and grouting system improve the excavation surface soil condition to expand the scope of application.
* The construction ground settlement is small, and the minimum thickness of the overburden layer is only 1.2 times of the pipe diameter.
* The center-supported cutter head, compact structure, light weight, long service life, and convenient maintenance.
* Unearthed by the screw conveyor, with a high amount o f excavation and large particle size.
* Steering controlled by the advanced electrical system operated easily and response sensitive, digitally displayed, intuitive and reliable.
* Full-section cutting, large aperture ratio.

Concentrated Mud Pressure Series

APPLICABLE DIAMETER:1500-4000MM
APPLICABLEGEOLOGY:HIGHPEBBLECONTENT
PEBBLE PARTICLESIZE ≤300MM

Get in Touch with Us!

If you are interested in any of our products or would like to discuss a customized order,Please feel free to contact us.

APIE FOUNDATION EQUIPMENT(CHINA) LIMITED

MODEL	MACHINE DIMENSION [OD LENGTH]	POWER [KW]	NOMINAL TORQUE [KN.M]	RPM	STEERING THRUST	SLURRY PIPE DIA [MM]
800	980*4400	30*1	62	4.6	38*4	100
1000	1220*4580	15*3	72	6	50*4	100
1200	1440*4500	22*2	93	0-4.5	63*4	100
1350	1640*4900	30*2	155	0-3.7	63*4	100
1500	1820*4810	37*2	190	0-3.7	80*4	100
1650	2000*4910	37*2	190	0-3.7	80*4	100
1800	2180*5250	30*4	310	0-3.7	80*8	100
2000	2420*5200	30*4	310	0-3.7	80*8	150
2200	2660*5300	37*4	565	0-2.5	80*8	150
2400	2920*5850	37*4	565	0-2.5	120*8	150
2600	3160*5850	30*6	747	0-2.3	120*8	150
2800	3400*5730	37*6	922	0-2.3	155*8	150
3000	3630*6000	37*8	1285	0-2.2	155*8	150

SECTION SIZE HIGHT*WDTH	CUTTER HEAD QTY	POWER	STEERING THRUST	SCREW CONVEYOR		TOTAL POWER[KW]
SECTION SIZE HIGHT*WDTH	CUTTER HEAD QTY	POWER	STEERING THRUST	POWER[KW]	TOTAL VOLUME[M²]	TOTAL POWER[KW]
5400*7500	6	337kw6	200t*18	45	200	771kw
5000*7000	6	337kw6	200t*18	37	140	755kw
4900*6900	6	337kw3/330kw3	200t*18	37	140	692kw
4500*8200	7	337kw3/2374	200t*18	45	200	734kw
4500*7700	6	337kw6	200t*18	37	140	755kw
4300*6000	6	330kw6	200t*16	37	140	629kw
4200*6900	5	637kw/237kw*4	200t*16	37	140	607kw
4200*5000	5	637kw/130kw*4	200t*16	37	70	394kw
2700*2700	1	4*30kw	150t*8	22	40	146kw

MODEL	MACHINE DIMENSION [OD*LENGTH]	POWER [KW]	NOMINAL TORQUE [KN.M]	RPM	STEERING THRUST	SLURRY PIPE DIA [MM]
800	980*4400	30*1	62	4.6	38*4	100
1000	1220*4580	15*3	72	6	50*4	100
1200	1440*4500	22*2	93	0-4.5	63*4	100
1350	1640*4900	30*2	155	0-3.7	63*4	100
1500	1820*4810	37*2	190	0-3.7	80*4	100
1650	2000*4910	37*2	190	0-3.7	80*4	100
1800	2180*5250	30*4	310	0-3.7	80*8	100
2000	2420*5200	30*4	310	0-3.7	80*8	150
2200	2660*5300	37*4	565	0-2.5	80*8	150
2400	2920*5850	37*4	565	0-2.5	120*8	150
2600	3160*5850	30*6	747	0-2.3	120*8	150
2800	3400*5730	37*6	922	0-2.3	155*8	150
3000	3630*6000	37*8	1285	0-2.2	155*8	150

ID	DIMENSIOM	POWER	NOMINAL TORQUE [KN.M]	RPM	STEERING THRUST	PIPING IN MAIN MACHINE[MM]
800	980×3600	22×1	40	5.2	38×4	100
1000	1220×3600	22×1	40	5.2	50×4	100
1200	1460×3600	15×2	66	4.3	63×4	100
1350	1640×3750	15×2	66	4.3	63×4	100
1500	1820×4080	30×2	220	2.6	80×4	100
1650	2000×4080	30×2	220	2.6	80×4	100
1800	2180×4200	22×4	422	1.99	80×4	100
2000	2420×4200	22×4	422	1.99	80×8	100
2200	2660×4200	22×4	422	1.99	80×8	100
2400	2900×4300	30×4	650	1.76	120×8	150
2600	3160×4700	30×5	906	1.58	120×8	150
2800	3350×5100	30×5	906	1.58	155×8	150
3000	3580×5400	30×6	1264	1.36	155×8	150

ID	DIMENSIOM	POWER	NOMINAL TORQUE [KN.M]	RPM	STEERING CYLINDER THRUST	SCREW CONVEYOR MOTOR POWER[KW]	SCREW CONVEYOR ID[MM]
1500	1820×4500	30×2	220	2.6	80×4	15	300
1650	2000×4500	30×2	220	2.6	80×4	15	300
1800	2420×4800	22×4	422	1.99	80×8	22	400
2000	2420×4800	22×4	422	1.99	80×8	22	400
2200	2660×4800	22×4	422	1.99	80×8	22	400
2400	2920×5000	30×4	650	1.76	120×8	30	520
2600	3160×5000	30×5	906	1.58	200×8	30	520
2800	3350×5100	30×5	906	1.58	200×8	30	520
3000	3580×5500	30×6	1264	1.36	200×10	30	520
3200	3820×5800	30×6	1264	1.36	200×10	37	700
3500	4160×5800	37×7	1902	1.36	200×12	37	700
4000	4840×5800	37×7	1902	1.36	200×12	37	700
