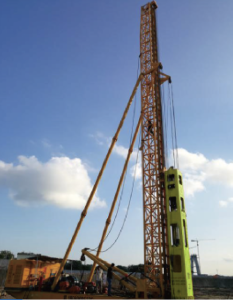

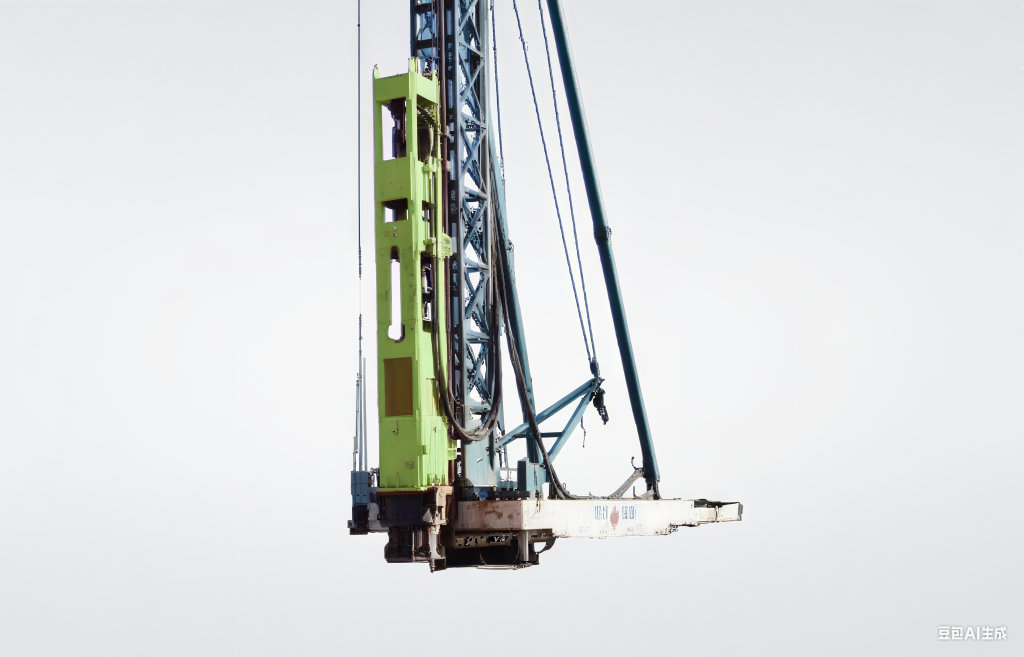

High – Performance Hydraulic Impact Hammer
1. Product Overview
Our hydraulic impact hammer is a cutting – edge piece of equipment designed for a wide range of piling applications. As a member of the impact – type pile hammer family, it stands out for its advanced technology and superior performance. It comes in two main types based on its structure and working principle: single – acting and double – acting.
2. Working Principle
The operation of our hydraulic impact hammer is a well – orchestrated process. The cycle begins with the hydraulic cylinder, which receives energy from the hydraulic power system. This energy is used to lift the hammer ram. When the ram reaches the pre – set stroke position, a mechanism within the piston allows the ram to freely fall under the influence of gravity in the case of a single – acting hammer, or with additional acceleration from the hydraulic system in a double – acting hammer. The falling ram then generates the hitting energy required to drive the pile into the ground. After the impact, the cycle repeats automatically, ensuring a continuous and efficient piling process.
3. Product Advantages
3.1 High Efficiency
Our hydraulic impact hammer offers high blow rates, which significantly speed up the piling process. In addition, the ten – gear adjustment for impacting frequency and piling stroke enables it to adapt to different driving conditions. This not only ensures fast piling but also guarantees accuracy, resulting in higher overall efficiency.
3.2 Environmental – Friendliness
In contrast to traditional diesel – powered impact hammers, our hydraulic impact hammer produces no exhaust emissions. This makes it an environmentally – friendly choice, suitable for use in areas where air quality is a concern, such as urban construction sites. Moreover, it operates with low noise levels, reducing noise pollution and minimizing disruptions to the surrounding environment.
3.3 Ease of Operation and Maintenance
The hydraulic and electrical control components are imported and well – designed, making the remote – control system reliable and user – friendly. Operators can easily adjust the ram stroke height during piling through the remote – control box, and the clear visibility of the ram drop height further simplifies the operation. Additionally, the design of the ram slide makes it easier to load and change the ram, reducing maintenance time and effort.
3.4 Versatility
This hydraulic impact hammer can be used with a variety of pile types, including concrete piles, steel casing piles, round piles, square piles, and H – beam piles. It is compatible with different driving types, such as fixed – leader mounting, U – type leads adaptable, and crane – suspended type hanging driving. This versatility makes it suitable for a wide range of construction projects.
4. Application Areas
Our hydraulic impact hammer is widely used in various construction fields:
4.1 Building Construction
In building construction, it is used to drive piles for the foundation of buildings, ensuring the stability and durability of the structures. Whether it’s a residential building, a commercial complex, or an industrial facility, our hydraulic impact hammer can handle the piling requirements effectively.
4.2 Bridge Construction
For bridge construction, where the foundation needs to be extremely stable to support the weight of the bridge and the traffic it will carry, our hydraulic impact hammer is an ideal choice. It can drive piles deep into the ground, providing a solid foundation for the bridge piers.
4.3 Marine Engineering

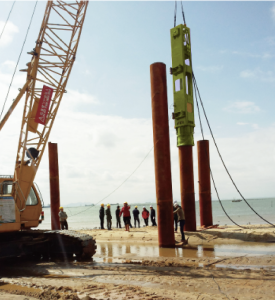

In marine engineering projects such as ports, docks, and offshore wind farms, the hydraulic impact hammer can be used to drive piles in challenging marine environments. It can drive precast concrete piles, steel pipe piles, and other types of piles required for marine structures.
4.4 Road and Railway Construction
In road and railway construction, the hydraulic impact hammer is used to drive piles for retaining walls, bridge abutments, and other infrastructure elements. It helps to ensure the long – term stability of the transportation infrastructure.
5. After – Sales Service
We are committed to providing excellent after – sales service to our customers.
5.1 Technical Support
Our team of experienced engineers is available to provide technical support. Whether it’s helping you choose the right model for your project, providing installation guidance, or troubleshooting any issues that may arise during operation, we are here to assist you.
5.2 Parts Supply
We maintain a sufficient inventory of spare parts to ensure timely replacement in case of component failure. This helps to minimize downtime and keep your construction project on track.
5.3 Warranty
All our hydraulic impact hammers come with a comprehensive warranty. We stand behind the quality of our products and will repair or replace any defective parts within the warranty period.
Choose our hydraulic impact hammer for your next piling project and experience the difference in performance, efficiency, and reliability. Contact us today to learn more about our products and how we can meet your specific construction needs.
